Instant heater 24 kW ID:
23,900.00 EGP
Description
The capacity is 24 kW with a digital screen that gives the most accurate required temperatures
It reaches a water pressure of 6 to 8 liters/minute, depending on the water pressure
The temperature reaches 60 degrees Celsius
The heater saves about 75% of electricity compared to other heaters
Energy level rating: Class A
Dimensions: Length: 45 cm / Width: 24 cm / Depth: 10 cm
It is considered the smallest heater in the world, with the ability to cover 2 bathrooms and a kitchen with a maximum of 7 meters of pipe length.
Requires a power cable of at least 6 mm and an automatic switch on the panel of at least 40 amps, permanent connection of 380 volts (3 phase).
Works on low water pressure
5 years warranty
made in Türkiye

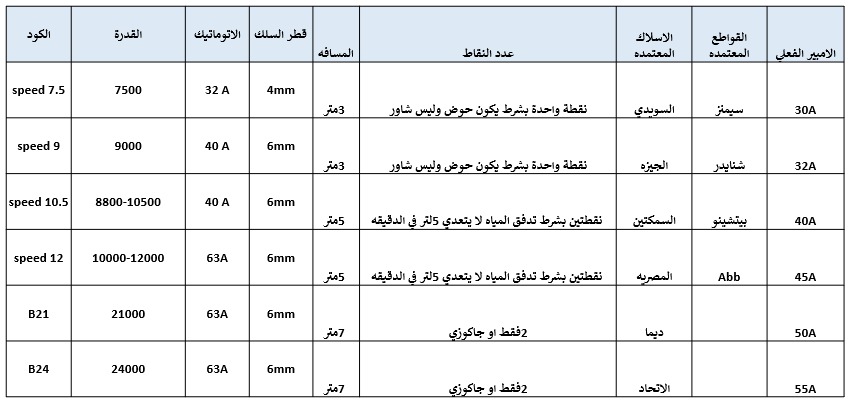

Installation Requirements Based on Water Heater Capacity
| Model | Power (W) | Current (A) | Wire Diameter | Distance | Number of Points | Approved Connections | Approved Breakers | Actual Amperage |
|---|---|---|---|---|---|---|---|---|
| speed 7.5 | 7500 | 32A | 4mm | 3m | One point, must be a sink, not a shower | El Sewedy | Siemens | 30A |
| speed 9 | 9000 | 40A | 6mm | 3m | One point, must be a sink, not a shower | Giza | Schneider | 32A |
| speed 10.5 | 8800-10500 | 40A | 6mm | 5m | Two points, provided that the water flow does not exceed 5L per minute | Bticino | Bticino | 40A |
| speed 12 | 10000-12000 | 63A | 6mm | 5m | Two points, provided that the water flow does not exceed 5L per minute | El Masria | ABB | 45A |
| B21 | 21000 | 63A | 6mm | 7m | 2 points only or Jacuzzi | Dima | Dima | 50A |
| B24 | 24000 | 63A | 6mm | 7m | 2 points only or Jacuzzi | El Etihad | El Etihad | 55A |
